Commercial Indoor LED Displays

AIDIA Prime is a premium indoor LED wall solution designed for environments that demand exceptional image quality, dependable performance, and a modern visual experience. Built with advanced LED technology, AIDIA Prime delivers vibrant colours, deep contrast, and crystal-clear visuals, making it the ideal choice for corporate offices, educational institutions, retail showrooms, hospitality venues, and public spaces. Whether you're presenting business data, engaging customers with digital content, or creating an immersive brand experience, AIDIA Prime ensures every image and video is displayed with outstanding clarity. Engineered for continuous operation, AIDIA Prime features high refresh rates, wide viewing angles, and precise colour calibration to provide a seamless viewing experience from every position. The slim cabinet design allows for easy installation while maintaining a sleek, professional appearance that complements any interior environment. Its energy-efficient design helps reduce power consumption without compromising brightness or performance.

  • Retail
  • Transportation
  • Digital signature



  • Control room
  • Temporary rental

Product Highlights

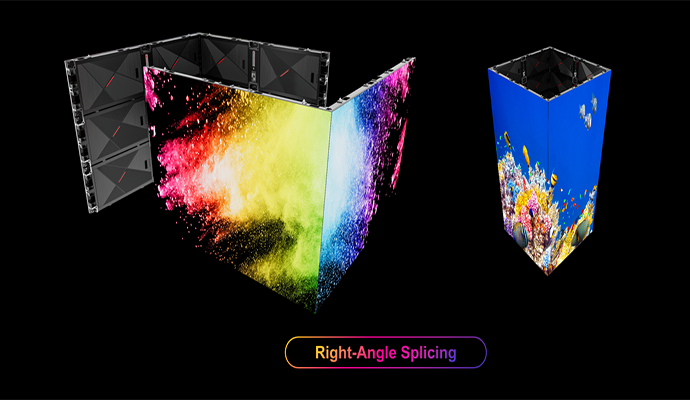

Right Angle Splicing L shape

With right-angle splicing offer seamless corner integration. This innovative design allows for unique, eye-catching installations that enhance spatial aesthetics.

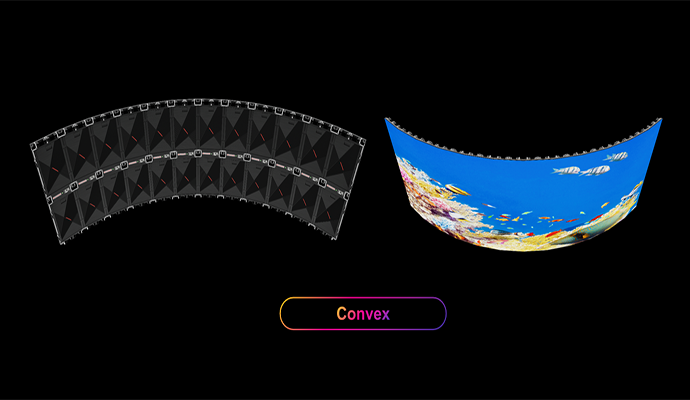

Concave and Convex

AIDIA CDI series support both inner and outer curved splicing. This flexibility is ideal for creating immersive environments and captivating displays.

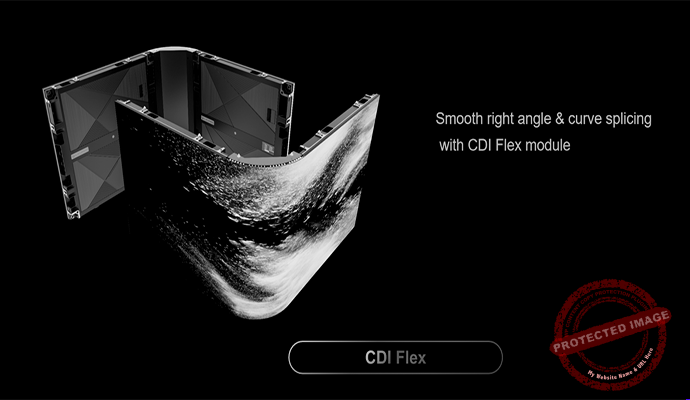

Flexible Module, Allowing for More Creative Shapes

AIDIA CDI series feature flexible modules, enabling creative and custom-shaped splicing, making it perfect for artistic installations and dynamic advertising.

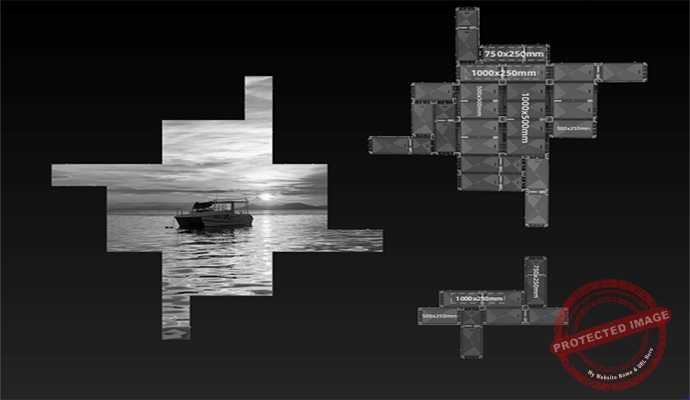

Free Splicing

Cabinets of 5 sizes (500x250, 500x500, 750x250, 1000x250, 1000x500mm) can be spliced freely
Supporting misalignment and rotation installation
Realizing various kinds of shapes and sizes

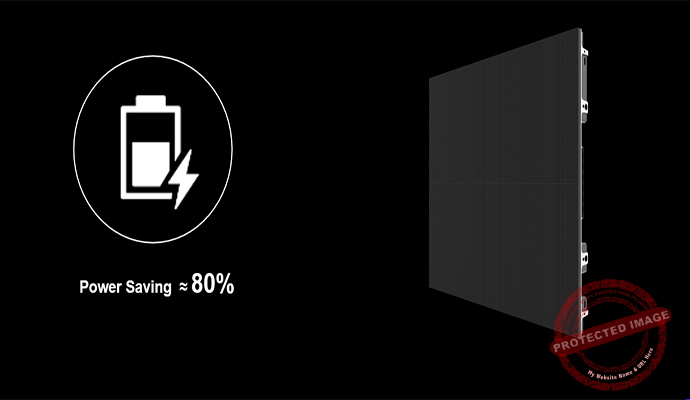

Black Screen Energy Saving (Standard)

CDI display seamlessly transitions to low-power mode with an extraordinary 80% reduction in energy usage compared to conventional displays under no signal status.

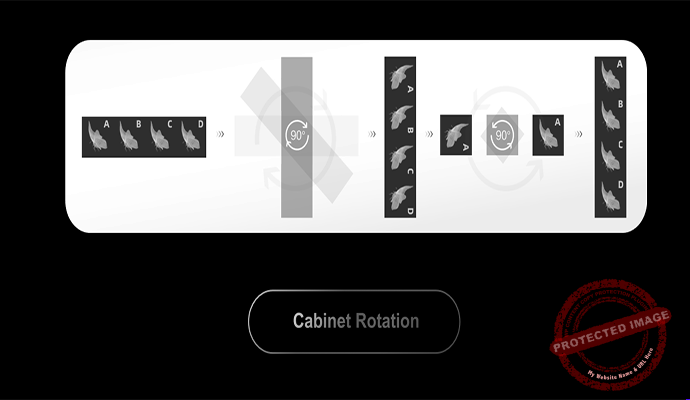

Cabinet Rotation Installation

250x1000, 250x750, 250x500mm cabinets can be rotated by 90° for installation.
> Step 1: Cabinet rotates 90° clockwise.
> Step 2: LED modules rotate 90° counterclockwise.

Specifications

Item APC1.2
Pixel Pitch (mm)
1.25
Module Resolution
200*200
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
600
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
390
Average Power Consumption (W/m²)
130
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%
Item APC1.5
Pixel Pitch (mm)
1.5625
Module Resolution
160*160
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
600
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
390
Average Power Consumption (W/m²)
130
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%
Item APC1.9
Pixel Pitch (mm)
1.953
Module Resolution
128*128
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
800
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
420
Average Power Consumption (W/m²)
140
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%
Item APG2.5
Pixel Pitch (mm)
2.5
Module Resolution
100x100
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
800
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
420
Average Power Consumption (W/m²)
140
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%
Item APG2.6
Pixel Pitch (mm)
2.604
Module Resolution
96*96
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
800
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
420
Average Power Consumption (W/m²)
140
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%
Item APG2.9
Pixel Pitch (mm)
2.976
Module Resolution
84*84
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
800
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
390
Average Power Consumption (W/m²)
130
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%
Item APG3.9
Pixel Pitch (mm)
3.906
Module Resolution
64*64
Module Size (mm)
250x250
Brightness Max Calibrated (nit)
800
Colour Temperature Adjustable (K)
3000 to 10000
Viewing Angle (Horizontal)°
160
Viewing Angle (Vertical)°
140
Contrast Ratio
4000:01:00
Max Power Consumption (W/m²)
390
Average Power Consumption (W/m²)
130
Operating Temperature (℃)
-20~40
Storage Temperature (℃)
-30~60
Operating Humidity (%RH)
10~80%
Storage Humidity (%RH)
10~85%

Let's Bring Your Vision to Every Pixel

Talk to our solutions team about the right LED display for your space — indoors, outdoors, or a fully custom install.
