AIDIA Orbit – Curved LED Walls
AIDIA Orbit is a premium curved LED wall solution designed for luxury environments and architecturally significant projects. Created for high-end retail, hospitality, corporate spaces, museums, experience centres, and landmark interiors, AIDIA Orbit combines sophisticated design with advanced LED display performance. Its curved configuration allows LED technology to integrate naturally with distinctive architectural forms, creating immersive surfaces that enhance the character of a space. The display delivers rich colours, excellent contrast, smooth motion, and high-resolution visuals for premium branding, digital art, presentations, entertainment, and immersive storytelling. AIDIA Orbit can be customised to accommodate different curves, dimensions, and installation concepts, providing architects and designers with greater creative freedom. Its refined cabinet design supports a clean installation while service-friendly construction helps simplify maintenance. Advanced calibration technology ensures consistent brightness and colour across the complete display. From luxury showrooms and premium hospitality spaces to iconic architectural installations, AIDIA Orbit creates a powerful visual centrepiece. Supported by AIDIA's professional engineering, installation, and technical services, it delivers an elegant combination of architecture, technology, and visual innovation. AIDIA Lite is suitable for shopping centres, commercial buildings, roadside advertising, retail outlets, showrooms, and promotional displays. The modular cabinet design allows flexible screen sizes and convenient installation, while efficient thermal management supports stable operation. High refresh rates and excellent colour reproduction create smooth, engaging content for videos, advertisements, announcements, and branding. Designed with practical maintenance in mind, AIDIA Lite provides easy access for servicing and component replacement. Combined with professional installation and technical support from AIDIA, it offers a cost-effective outdoor display solution for businesses looking to increase visibility and create impactful digital communication.
- Design Centre
- Control Centre
- Broadcast
- Conference Room
- Exhibition Centre
- Home Cinema
Product Highlights
MICRO LED CHIPS
Micro LED Chips--Nanoscale flip chip size less than 100 microns (100um). High luminous efficiency; uniform light output; reduced thermal resistance; reduced wire bonding process; stable and reliable.

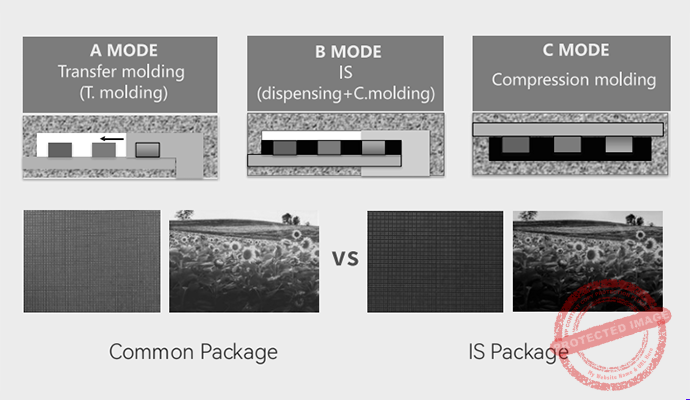

SELF-DEVELOPED MOLDING PACKAGING PROCESS
High consistency, good colour uniformity and higher contrast ratio.

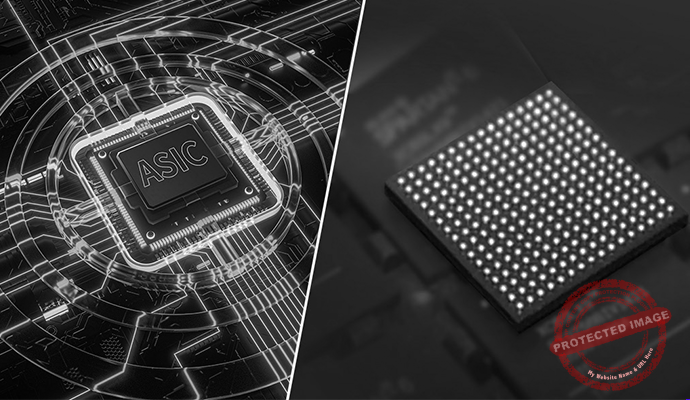

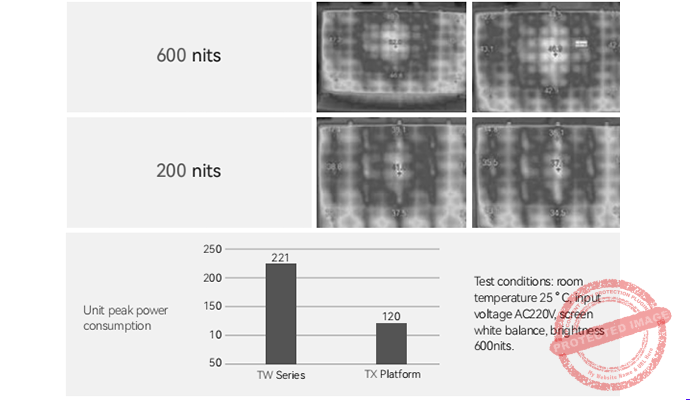

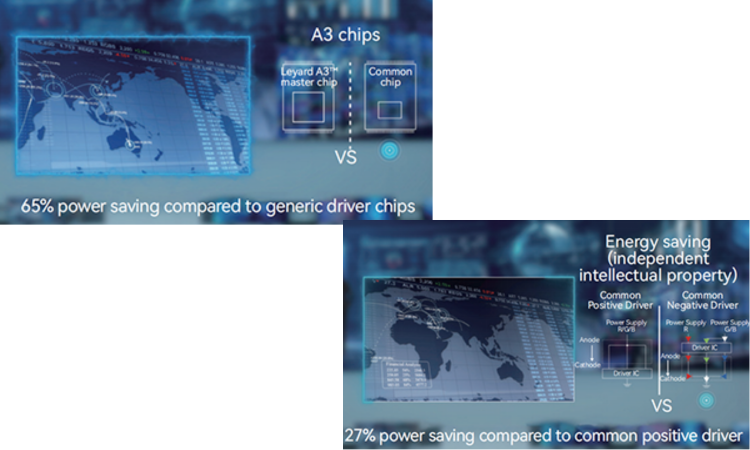

ULTRA-LOW POWER CONSUMPTION
Self-developed common cathode driver IC and Leyard A3™ ASIC main controller chip. Power consumption is approximately 27% less than a co-positive driver design at the same brightness (600-800nit). It can achieve 2000nit peak brightness at the same peak power consumption.
SUPERB COLOUR
With advanced image processing technology, the series achieves a 100% DCI-P3 colour gamut with twice the chromaticity.
MINIMUM PIXEL PITCH IS 0.4MM
P0.4 TX-Micro is the first product to be mass-produced, leading the LED display industry to develop high standards in electronic design and process manufacturing.

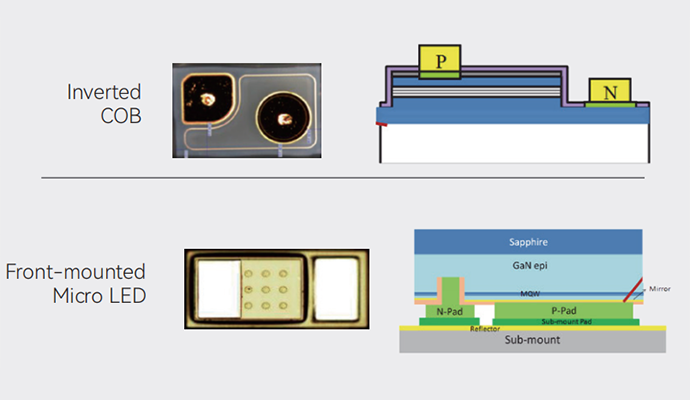

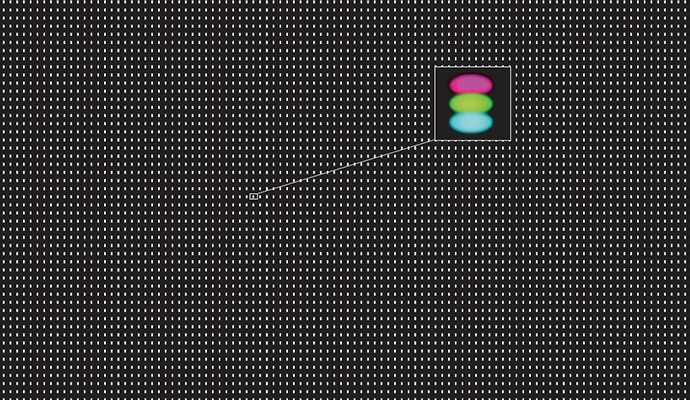

FULL FLIP CHIP
With RGB Full Flip Chip and COB technology, the series has high contrast ratio. Up to 95% of the display unit is black. With Full flip chip, it reduces process, avoids failure caused by soldering line, and greatly improves stability.
MINI
With Mini LED flip-chip, this series is available in sizes 100μm - 200μm. Fine pitch; higher pixels
ENERGY SAVING
Using common cathode drive technology and selfdevelopedLeyard AJ™ ASIC master chip, this series saves about 27% energy.
HIGH CONTRAST
Contrast ratio up to 30,000:1. The flip chip combined with the surface coating technology brings higher luminous efficiency and higher contrast ratio, significantly improving the product quality.
HIGH FRAME RATE HFR
The TX Platform supports high frequency HFR input signals, which can currently support 120Hz (2D).

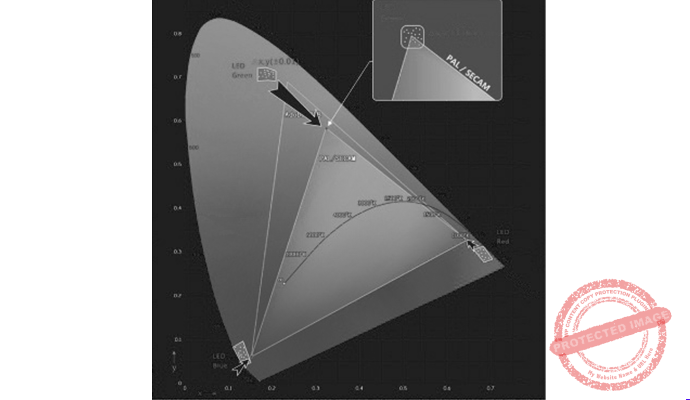

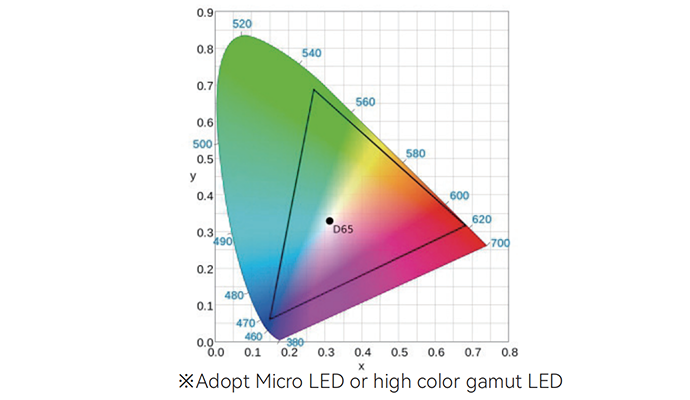

SUPPORT DCI P3 COLOR GAMUT
The color gamut of TX platform products can be as bigger as DCI P3 standard. Compared with Rec. 709, there are more red and green color to be shown, and the blue is more precise.

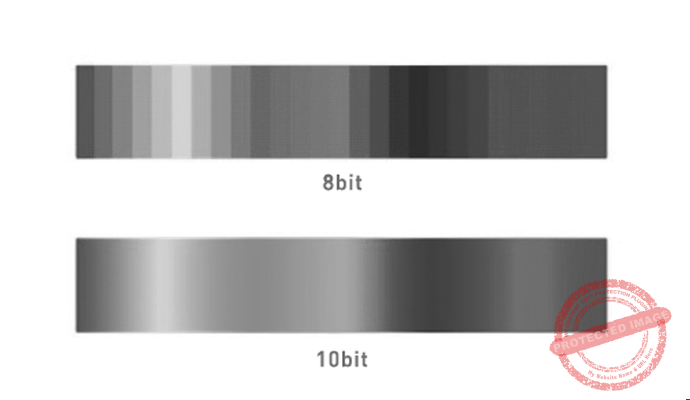

10BIT
The TX Platform supports both 8bit and 10bit, allowing for higher quality video content to be displayed.
ADVANCED IMAGE PROCESSING TECHNOLOGY
Leyard master control has strong video processing and correction data calculation capabilities to output high-definition video images. It has broadcast-quality video processing technology, 10bit grayscale and 16bit color processing capabilities, can display 281 trillion colors. It automatically adapts to 50/60Hz signal source, scans frame by frame to improve picture clarity, and has high image resolution, image can be restored pixel by pixel, clear and sharp. It also performs image noise reduction, sharpening, color optimization and color temperature adjustment.

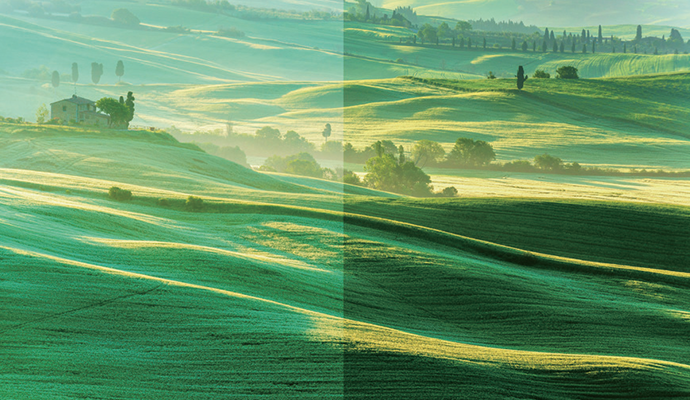

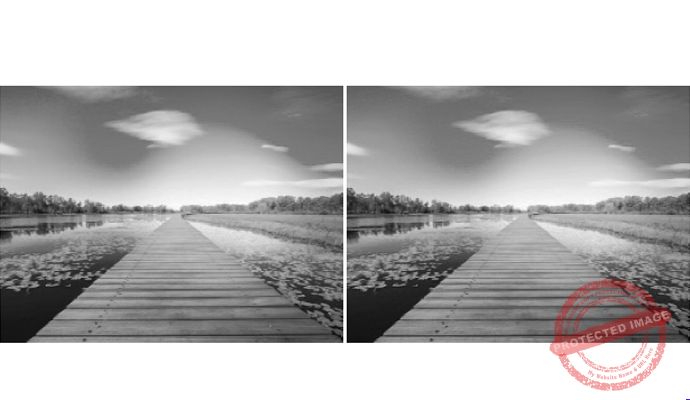

COLOR ENHANCEMENT
Color enhancement processing improves the useful information in the image. Make dim image clear and bright or emphasize certain features. Enlarge the difference between features of different objects in the image and suppress features that are not of interest. Improve image quality, enrich information, and enhance image interpretation and recognition.

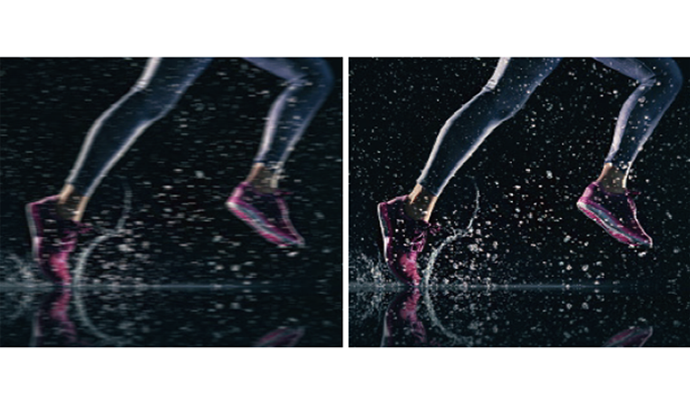

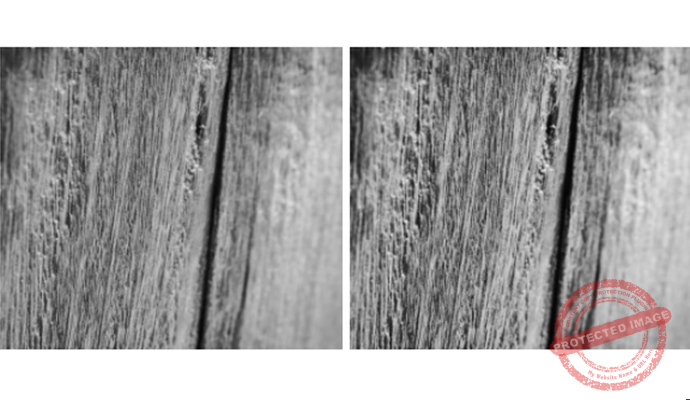

IMAGE SHARPENING
Sharpening images by video processor can reveal more details and textures, enhance the grayscale contrast, and better identify the image features.
ADVANCED MOTION COMPENSATION
LED features Nanosecond response time, the internal between ON and OFF is extremely short. It could rapidly response without Visual Staying Phenomenon, very clear. It has big advantage for those applications requiring super good dynamic rendering effect. The self emitting mode for LED needs no response time, no visual staying phenomenon happened even when people observe the rapid movement objects.

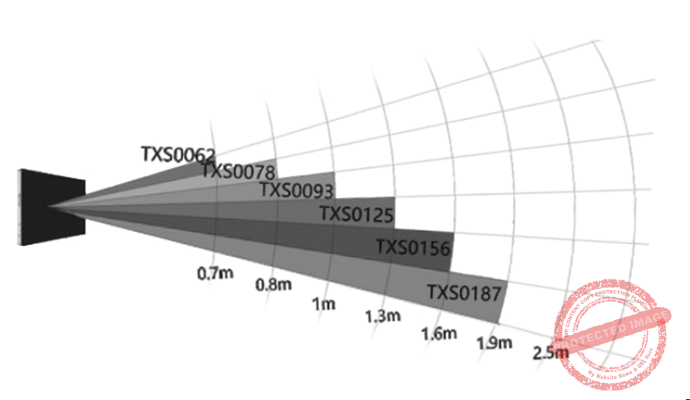

VIEWER-FRIENDLY
TX platform products deliver an amazing viewing experience. The incredible short viewing distance will introduce the products to brand-new applications.
COMMON CATHODE DRIVE MODE
Common cathode drive mode allows precise voltage control. While reducing heat generation, the power consumption and probability of LED damage are effectively reduced, and the average life of LEDs is improved.
PIXEL BY PIXEL BRIGHTNESS AND COLOR CALIBRATION
Professional pixel-by-pixel brightness and color calibration, not full screen calibration, high precision, color uniformity <±0.003 (at 6500K white balance).

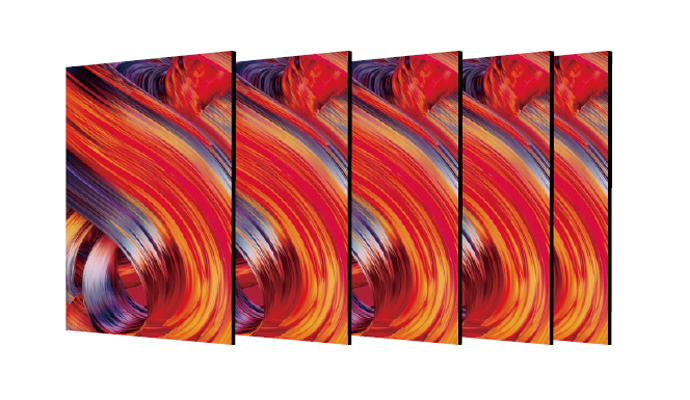

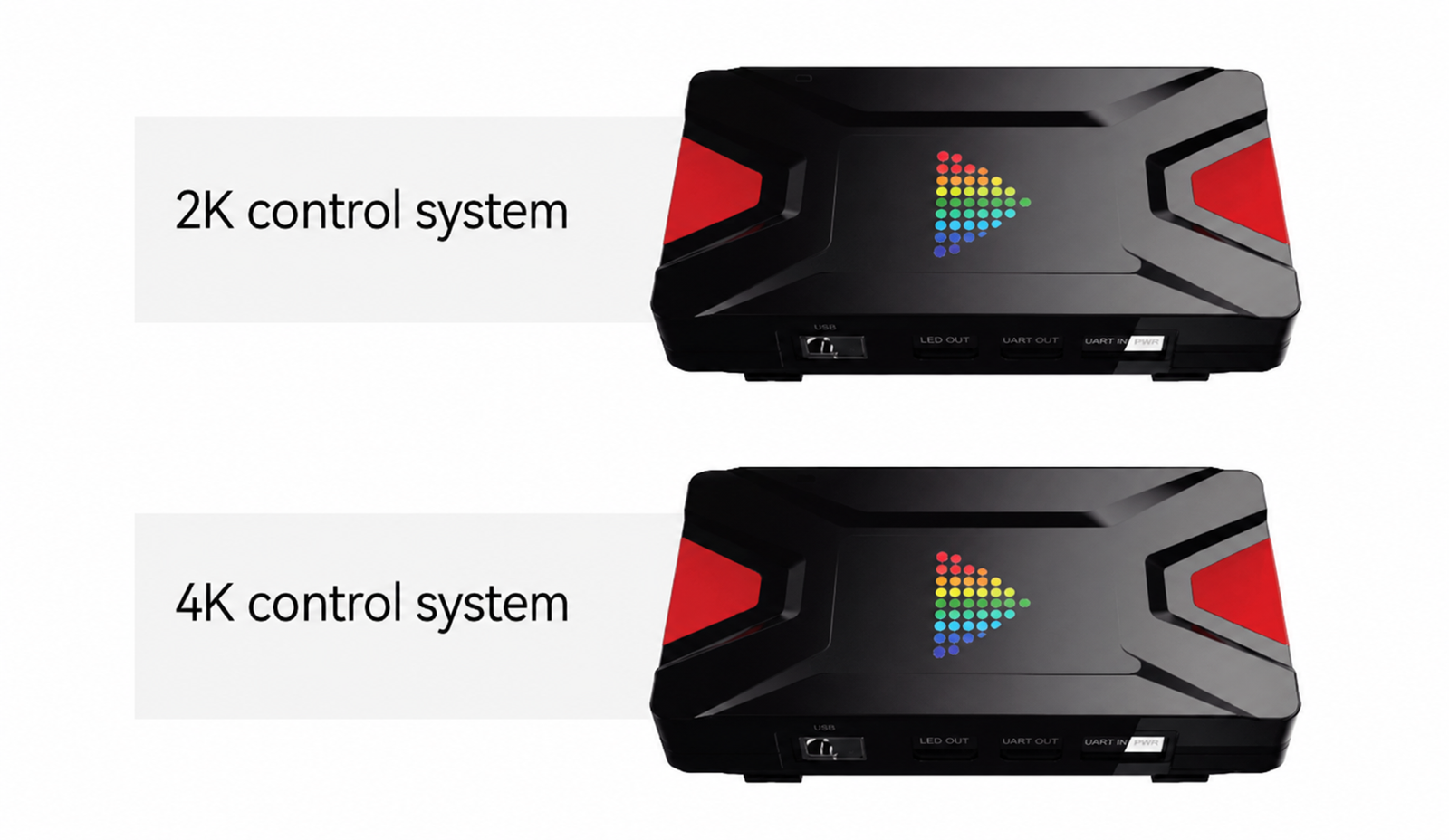

EASY TO UPGRADE DISPLAY RESOLUTION
The TX series adopts a modular design, and the control system supports 2K to 4K upgrades. It only needs to replace the control module to upgrade the screen from 2K to 4K.

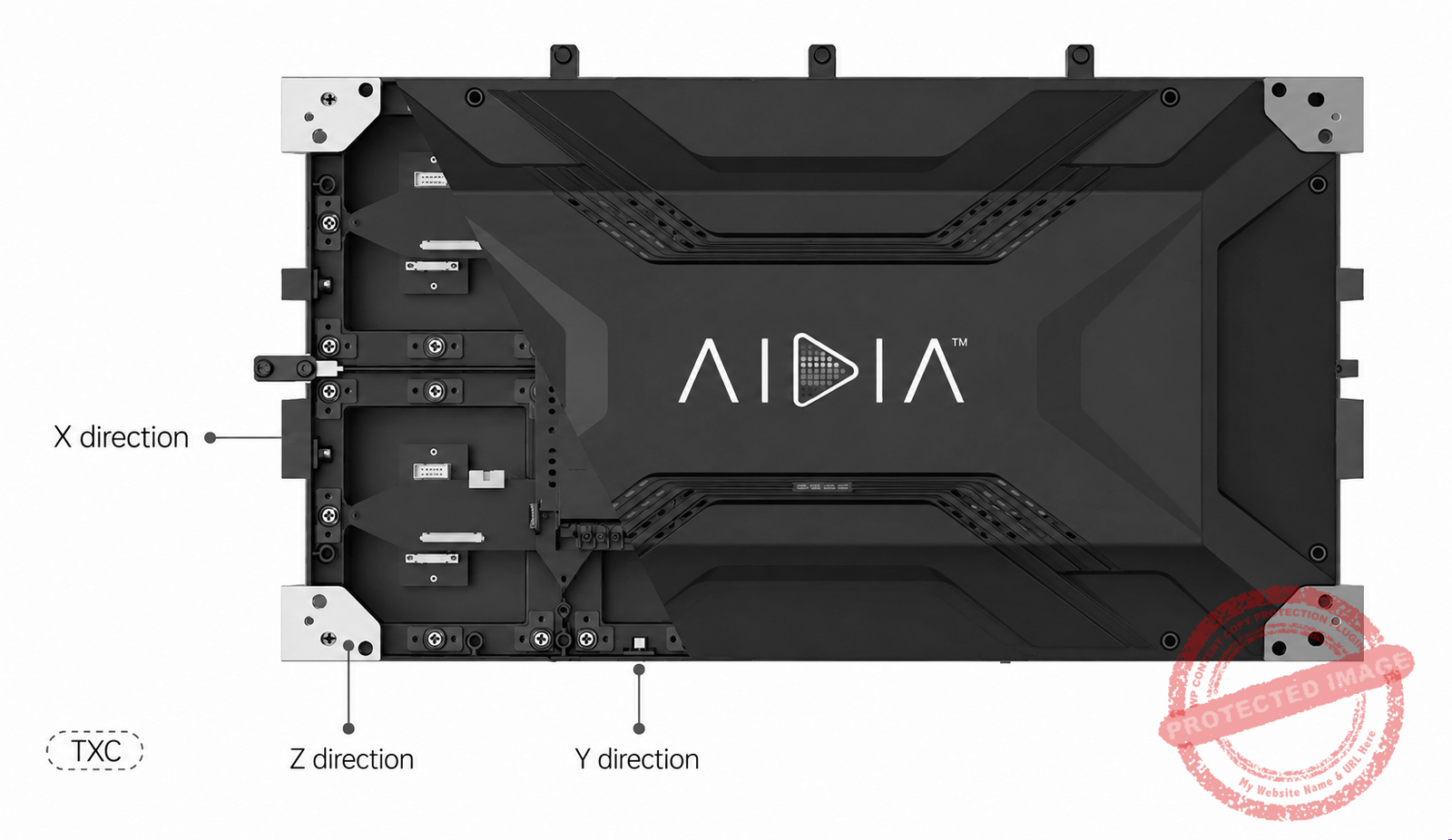

6-AXIS ALIGNMENT
A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.
Specifications
| Item | AO0.78 |
|---|---|
|
Pixel Configuration
|
Micro LED
|
|
Pitch (mm)
|
0.78125
|
|
Module Resolution (WxH)
|
192x216
|
|
Cabinet Resolution(WxH)
|
768x432
|
|
Cabinet Dimension (WxHxD:mm)
|
600x337.5x100
|
|
Pixel Density (pixel/㎡)
|
1638400
|
|
Surface Flatness (mm)
|
≤0.1
|
|
Brightness Calibration
|
Yes
|
|
Peak Brightness (nits) (after calibration)
|
≥1200
|
|
White Balance Brightness (nits) (after calibration)
|
800-1000 *
|
|
Color Temperature（K）
|
3000~10000 adjustable
|
|
Brightness Uniformity
|
≥97%
|
|
Viewing Angle (H/V) °
|
170/150
|
|
Contrast Ratio
|
≥10000:1
|
|
Drive Mode
|
Common cathode constant current drive
|
|
Grey Level (bit)
|
25
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-10 ~ 40
|
|
Storage Humidity (RH)
|
10~85% no condensation
|
|
Operation Humidity (RH)
|
10~80% no condensation
|
| Item | AO0.93 |
|---|---|
|
Pixel Configuration
|
Micro LED
|
|
Pitch (mm)
|
0.9375
|
|
Module Resolution (WxH)
|
160x180
|
|
Cabinet Resolution(WxH)
|
640x360
|
|
Cabinet Dimension (WxHxD:mm)
|
600x337.5x100
|
|
Pixel Density (pixel/㎡)
|
1137778
|
|
Surface Flatness (mm)
|
≤0.1
|
|
Brightness Calibration
|
Yes
|
|
Peak Brightness (nits) (after calibration)
|
≥2000
|
|
White Balance Brightness (nits) (after calibration)
|
1000-1200 *
|
|
Color Temperature（K）
|
3000~10000 adjustable
|
|
Brightness Uniformity
|
≥97%
|
|
Viewing Angle (H/V) °
|
170/150
|
|
Contrast Ratio
|
≥10000:1
|
|
Drive Mode
|
Common cathode constant current drive
|
|
Grey Level (bit)
|
25
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-10 ~ 40
|
|
Storage Humidity (RH)
|
10~85% no condensation
|
|
Operation Humidity (RH)
|
10~80% no condensation
|
| Item | AO1.25 |
|---|---|
|
Pixel Configuration
|
Micro LED
|
|
Pitch (mm)
|
1.25
|
|
Module Resolution (WxH)
|
120x135
|
|
Cabinet Resolution(WxH)
|
480x270
|
|
Cabinet Dimension (WxHxD:mm)
|
600x337.5x100
|
|
Pixel Density (pixel/㎡)
|
640000
|
|
Surface Flatness (mm)
|
≤0.1
|
|
Brightness Calibration
|
Yes
|
|
Peak Brightness (nits) (after calibration)
|
≥2000
|
|
White Balance Brightness (nits) (after calibration)
|
1000-1200 *
|
|
Color Temperature（K）
|
3000~10000 adjustable
|
|
Brightness Uniformity
|
≥97%
|
|
Viewing Angle (H/V) °
|
170/150
|
|
Contrast Ratio
|
≥20000:1
|
|
Drive Mode
|
Common cathode constant current drive
|
|
Grey Level (bit)
|
25
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-10 ~ 40
|
|
Storage Humidity (RH)
|
10~85% no condensation
|
|
Operation Humidity (RH)
|
10~80% no condensation
|
