AIDIA MAX – Premium Outdoor LED Walls
AIDIA MAX is a premium outdoor LED wall engineered for high-impact digital experiences across airports, smart cities, large commercial spaces, stadiums, and premium DOOH advertising environments. Designed for demanding applications, it combines high brightness, excellent contrast, accurate colour reproduction, and reliable 24/7 performance to deliver powerful visuals in outdoor conditions. Its robust construction is designed to withstand challenging environmental conditions while maintaining consistent display quality. Advanced LED technology provides smooth motion, sharp imagery, and excellent visibility for advertising, information, entertainment, and public communication. The modular architecture supports large-format installations and customised screen dimensions, making AIDIA MAX suitable for everything from monumental digital billboards to sophisticated urban displays. Efficient thermal management and service-friendly cabinet design help simplify maintenance and support long-term operation. AIDIA MAX can be integrated with professional content management and control systems for flexible digital communication. With AIDIA's engineering, installation, commissioning, and technical support, AIDIA MAX delivers a premium outdoor display platform built for visibility, reliability, and lasting performance.
- Outdoor advertisement
- Shopping malls
- Scenic spots
- Stadiums
Product Highlights

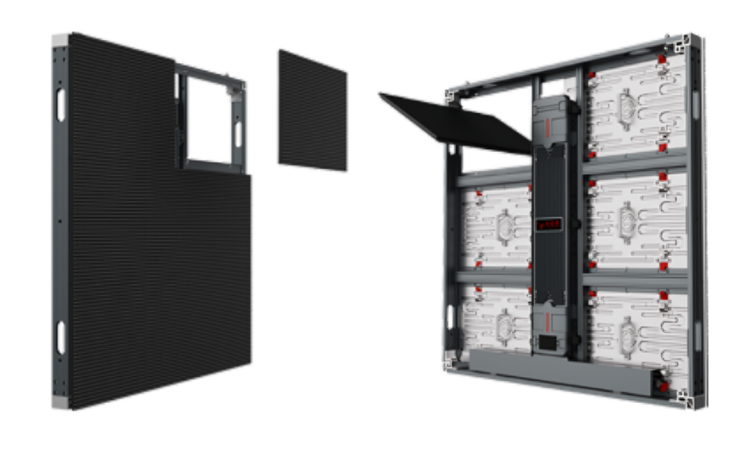

Quick Front/Rear Installation and Maintenance
Occupies less space, enables more flexible installation, and allows for easier maintenance.

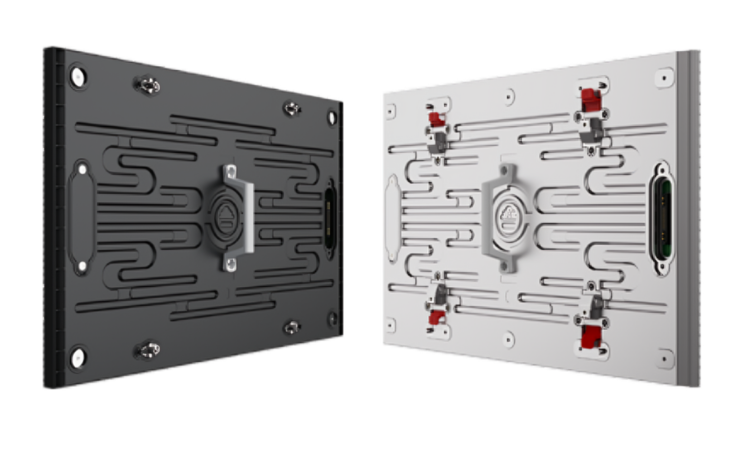

Dual Connectors for Modules
The module features a universal design with connectors on both the left and right sides, facilitating installation and maintenance.

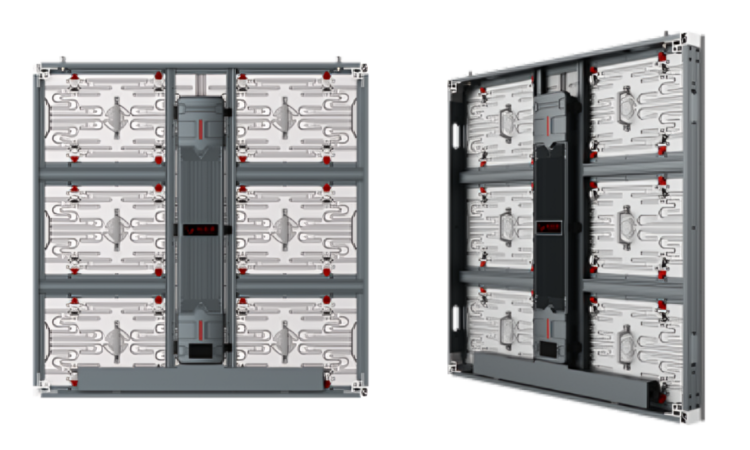

Aluminum Back Shell Class B
Compliant with Class B standards, NSO-G is suitable for a wide range of traffic and heavy industrial applications, such as airports, railway stations, and mining operations.
· Reduced EM Emissions
· Higher environmental adaptability
· Stronger anti-interference ability
.The certification is expected to be completed by Q2-Q3 of 2026.

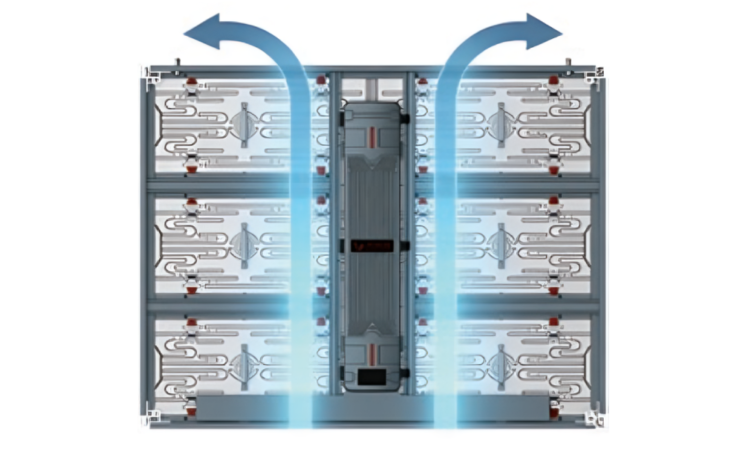

Efficient Heat Dissipation
Features a efficient cooling system with large-area dissipation and dedicated convection channels, ensuring reliable performance without fans. This independent power box can ensure the thermal stability and performance of the display module.
Specifications
| Item | AMCAL3.9 |
|---|---|
|
Pixel Pitch (mm)
|
3.9
|
|
Module Resolution
|
128x84
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7000
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCAL4.8 |
|---|---|
|
Pixel Pitch (mm)
|
4.8
|
|
Module Resolution
|
104x70
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7500
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCAL6.9 |
|---|---|
|
Pixel Pitch (mm)
|
6.9
|
|
Module Resolution
|
72x48
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7500
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCAL10.4 |
|---|---|
|
Pixel Pitch (mm)
|
10.4
|
|
Module Resolution
|
48x32
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7500
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCP3.9 |
|---|---|
|
Pixel Pitch (mm)
|
3.9
|
|
Module Resolution
|
128x84
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7000
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCP4.8 |
|---|---|
|
Pixel Pitch (mm)
|
4.8
|
|
Module Resolution
|
104x70
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7500
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCP6.9 |
|---|---|
|
Pixel Pitch (mm)
|
6.9
|
|
Module Resolution
|
72x48
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7500
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
| Item | AMCP10.4 |
|---|---|
|
Pixel Pitch (mm)
|
10.4
|
|
Module Resolution
|
48x32
|
|
Module Size (mm)
|
500x333.3
|
|
Cabinet Dimension (WxHxD : mm)
|
1000x1000x87
|
|
Max Brightness Calibrated (nit)
|
≥7500
|
|
Contrast Ratio
|
10000:1
|
|
Max/Ave Power Consumption (W/㎡)
|
550/200
|
|
Front-Side IP Rating
|
IP66
|
|
Operation/Storage Temperature (℃)
|
-30~50/-40~60
|
