AIDIA Lite – Commercial Outdoor LED Walls
AIDIA Lite is a reliable outdoor LED wall solution designed for commercial advertising, retail signage, building displays, and public communication. Built for demanding outdoor environments, it delivers bright, clear, and vibrant visuals that remain visible in changing daylight conditions. Its high-brightness LED technology ensures strong image clarity, while durable construction provides dependable performance for long-term outdoor use. AIDIA Lite is suitable for shopping centres, commercial buildings, roadside advertising, retail outlets, showrooms, and promotional displays. The modular cabinet design allows flexible screen sizes and convenient installation, while efficient thermal management supports stable operation. High refresh rates and excellent colour reproduction create smooth, engaging content for videos, advertisements, announcements, and branding. Designed with practical maintenance in mind, AIDIA Lite provides easy access for servicing and component replacement. Combined with professional installation and technical support from AIDIA, it offers a cost-effective outdoor display solution for businesses looking to increase visibility and create impactful digital communication.
- Commercial Street
- Shopping Mall
- Office Building
- Sports Venue
- Train Station
- Pedestrian Street
- Subway Station
- Central Park
Product Highlights

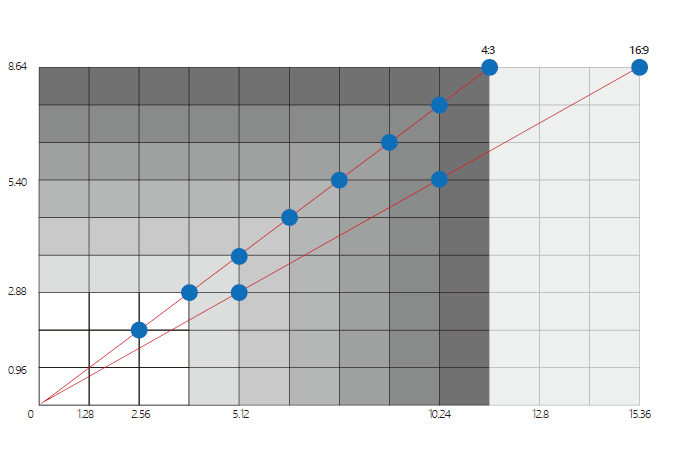

LED Video Wall Configuration
Screen Dimension (Unit: m)
High Brightness
Brightness can fully meet the needs of outdoor display, standard 6000 nits and high brightness 8000 nits optional.
Perfect Uniformity

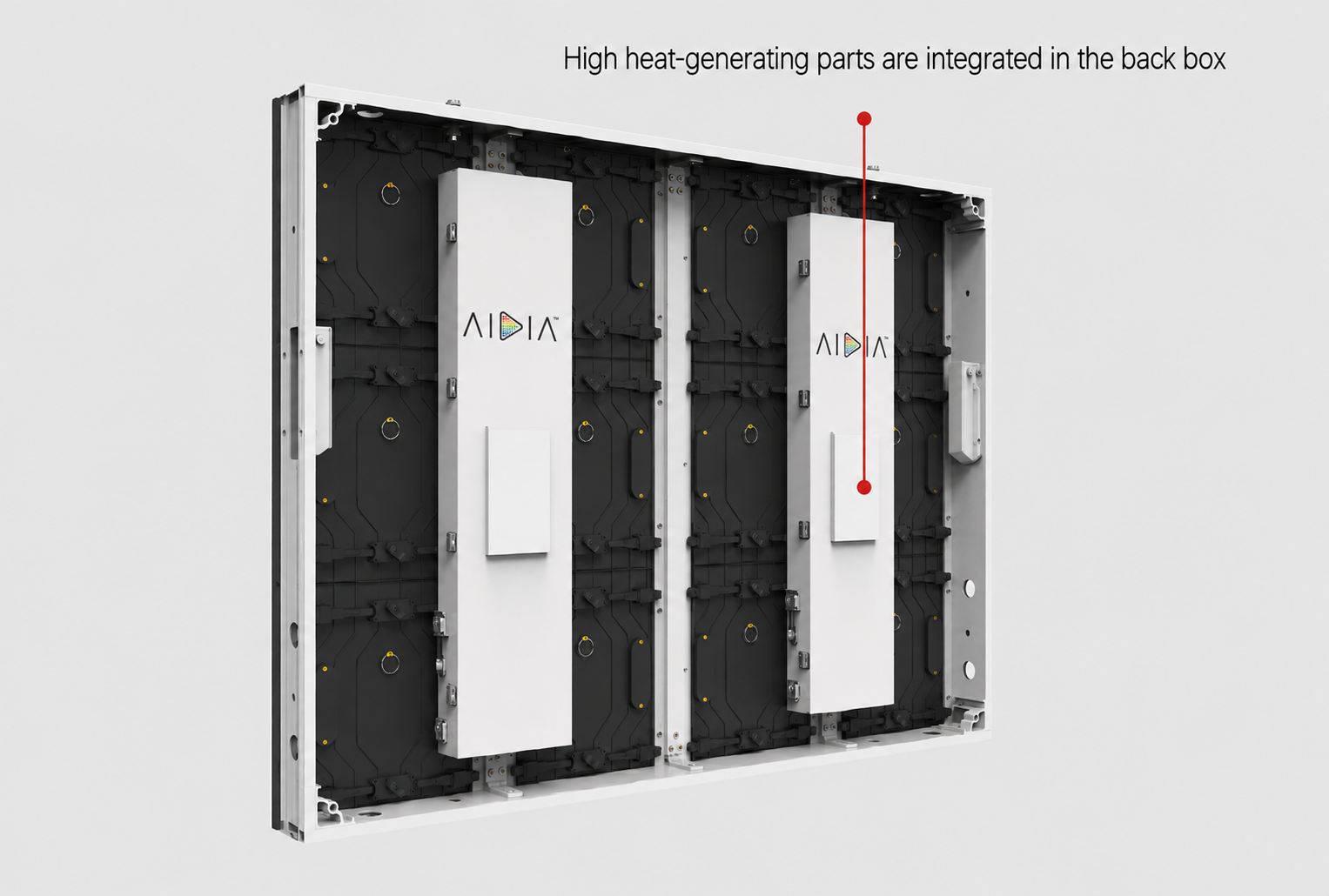

Power supply and main control components are connected to the lamp board in a floating design to avoid adverse effects. SMD LED configuration ensures good color uniformity at large viewing angles.

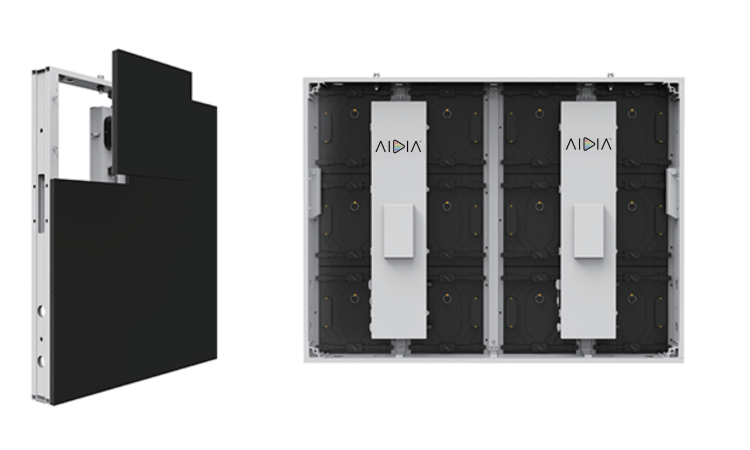

Front/Rear to Installation/Maintenance
> NCV cabinet is front and rear accessible, for easier maintenance. > NCV cabinet is designed in a smart way that the mechanical structure supports both the front and rear installation. > All electronic components could be disassembled from the front. The LED module is fixed to cabinet structure by mechanical locks, with a safety rings to eliminate any potential risks

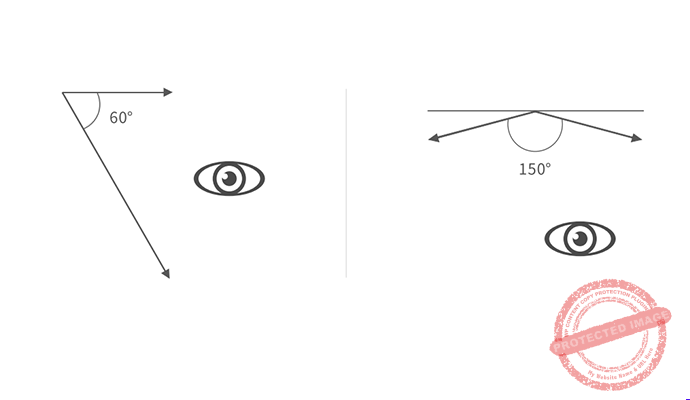

Wide Viewing Angle
60 degree vertical downward viewing angle and 150 degree horizontal viewing angle meet extreme viewing needs.
3840Hz High Refresh Rate
> Thanks to the very high refresh rate, the image is very stable under the cameras of the mobile phones. > Barcode is readable by the mobile phones to enable a more efficient interactive advertisement.

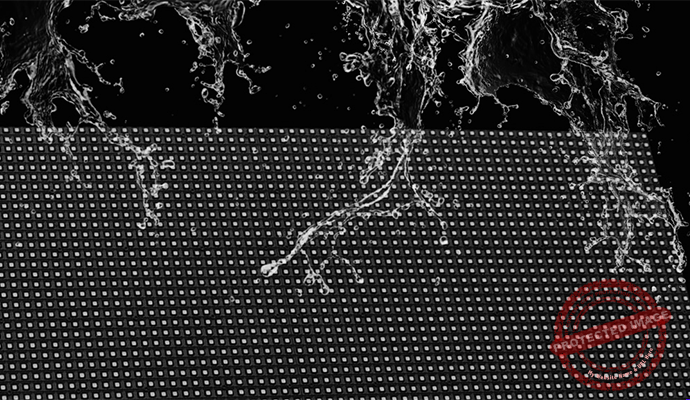

IP65 Protection
> IP65 Protection Level.
> Both front side and back side of the cabinet reach IP65 Protection level.
> Cabinets Can be installed and exposed to the open air, without extra enclosure.

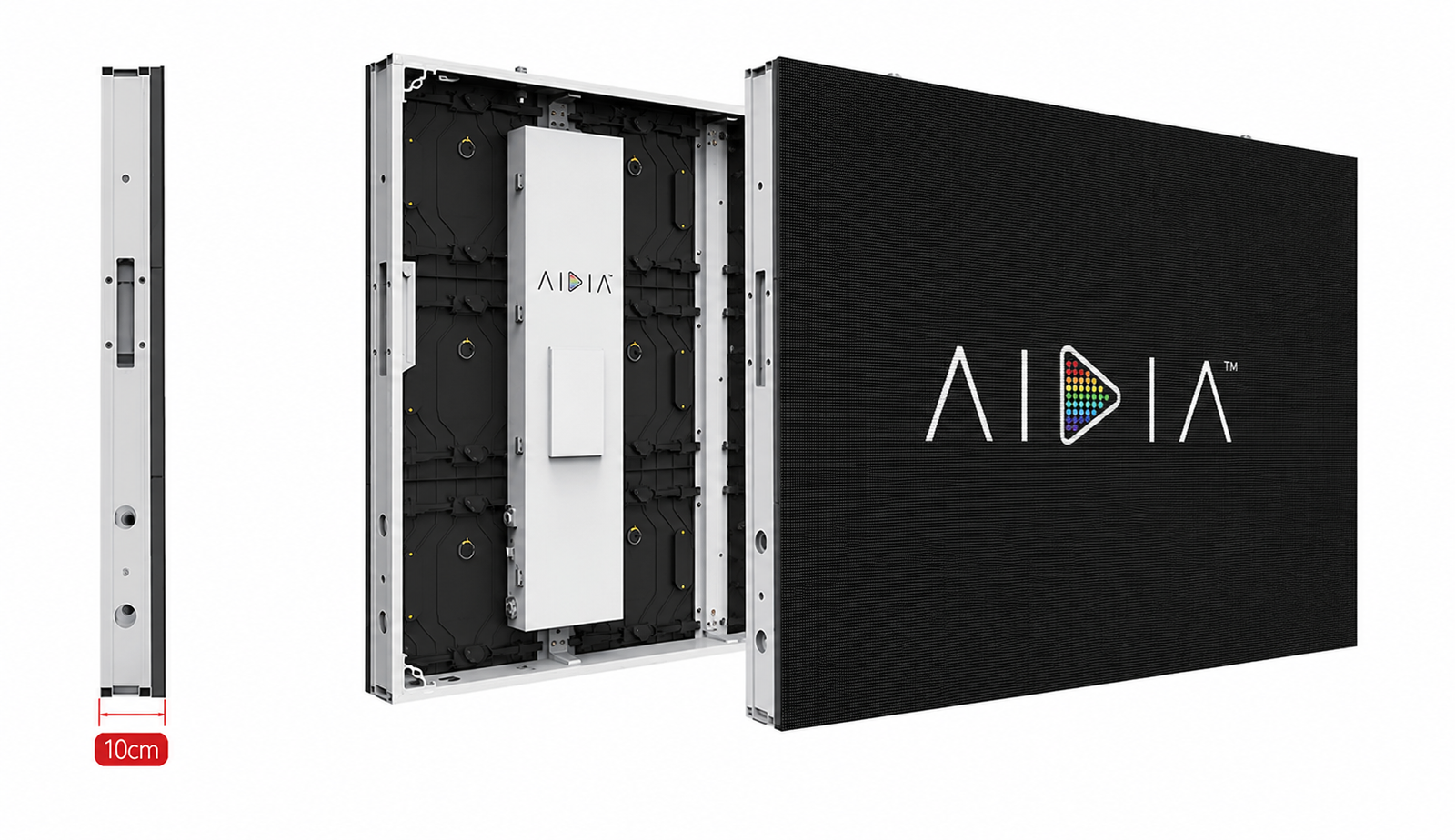

Ultra Light Weight Tile
> Ultra light cabinet -- less than 30Kg/㎡.
> When compared with traditional outdoor cabinet, NCV is about 20%-30% lighter, convenient for shipping and installation. The backsupport structure is also lighter, which is helpful to lower the overall cost.
> Cabinet thickness is only 10cm, ideal for different outdoor big LED screen applications.
Specifications
| Item | ALG4.0 |
|---|---|
|
Pixel Pitch
|
4
|
|
Module Resolution (WxH)
|
80x80
|
|
Module Dimension (WxH: mm)
|
320x320
|
|
Cabinet Resolution (WxH)
|
320x240
|
|
Cabinet Area (㎡)
|
1.2288
|
|
Weight (kg/cabinet;kg/㎡)
|
36; 29
|
|
IP Level (Front / Rear)
|
IP65
|
|
Brightness (nits)
|
5500
|
|
Viewing angle (horiz ; vert) °
|
150; 110
|
|
Power (max; avg)W/㎡
|
700; 215
|
|
Maintenance
|
Front / Rear
|
|
Operation/Storage Temp (℃)
|
-30~50; -40~60
|
|
Operation/Storage Humidity(RH)
|
10~90%; 10~80%
|
|
Frame rate Processing (Hz)
|
50&60
|
| Item | ALG5.0 |
|---|---|
|
Pixel Pitch
|
5
|
|
Module Resolution (WxH)
|
64x64
|
|
Module Dimension (WxH: mm)
|
320x320
|
|
Cabinet Resolution (WxH)
|
256x192
|
|
Cabinet Area (㎡)
|
1.2288
|
|
Weight (kg/cabinet;kg/㎡)
|
36; 29
|
|
IP Level (Front / Rear)
|
IP65
|
|
Brightness (nits)
|
6000
|
|
Viewing angle (horiz ; vert) °
|
150; 110
|
|
Power (max; avg)W/㎡
|
650; 215
|
|
Maintenance
|
Front / Rear
|
|
Operation/Storage Temp (℃)
|
-30~50; -40~60
|
|
Operation/Storage Humidity(RH)
|
10~90%; 10~80%
|
|
Frame rate Processing (Hz)
|
50&60
|
| Item | ALG6.67 |
|---|---|
|
Pixel Pitch
|
6.67
|
|
Module Resolution (WxH)
|
48x48
|
|
Module Dimension (WxH: mm)
|
320x320
|
|
Cabinet Resolution (WxH)
|
192x144
|
|
Cabinet Area (㎡)
|
1.2288
|
|
Weight (kg/cabinet;kg/㎡)
|
36; 29
|
|
IP Level (Front / Rear)
|
IP65
|
|
Brightness (nits)
|
6000
|
|
Viewing angle (horiz ; vert) °
|
150; 110
|
|
Power (max; avg)W/㎡
|
610; 200
|
|
Maintenance
|
Front / Rear
|
|
Operation/Storage Temp (℃)
|
-30~50; -40~60
|
|
Operation/Storage Humidity(RH)
|
10~90%; 10~80%
|
|
Frame rate Processing (Hz)
|
50&60
|
| Item | ALG8.0 |
|---|---|
|
Pixel Pitch
|
8
|
|
Module Resolution (WxH)
|
40x40
|
|
Module Dimension (WxH: mm)
|
320x320
|
|
Cabinet Resolution (WxH)
|
160x120
|
|
Cabinet Area (㎡)
|
1.2288
|
|
Weight (kg/cabinet;kg/㎡)
|
36; 29
|
|
IP Level (Front / Rear)
|
IP65
|
|
Brightness (nits)
|
6000
|
|
Viewing angle (horiz ; vert) °
|
150; 110
|
|
Power (max; avg)W/㎡
|
610; 200
|
|
Maintenance
|
Front / Rear
|
|
Operation/Storage Temp (℃)
|
-30~50; -40~60
|
|
Operation/Storage Humidity(RH)
|
10~90%; 10~80%
|
|
Frame rate Processing (Hz)
|
50&60
|
| Item | ALG10.0 |
|---|---|
|
Pixel Pitch
|
10
|
|
Module Resolution (WxH)
|
32x32
|
|
Module Dimension (WxH: mm)
|
320x320
|
|
Cabinet Resolution (WxH)
|
128x96
|
|
Cabinet Area (㎡)
|
1.2288
|
|
Weight (kg/cabinet;kg/㎡)
|
36; 29
|
|
IP Level (Front / Rear)
|
IP65
|
|
Brightness (nits)
|
6000
|
|
Viewing angle (horiz ; vert) °
|
150; 110
|
|
Power (max; avg)W/㎡
|
610; 200
|
|
Maintenance
|
Front / Rear
|
|
Operation/Storage Temp (℃)
|
-30~50; -40~60
|
|
Operation/Storage Humidity(RH)
|
10~90%; 10~80%
|
|
Frame rate Processing (Hz)
|
50&60
|
