Commercial Indoor LED Displays
AIDIA Core-Entry is a dependable indoor LED display solution designed to provide outstanding visual performance for everyday commercial applications. Combining high brightness, vibrant color reproduction, and energy-efficient technology, the Core-Entry series offers businesses an affordable way to create engaging visual experiences without compromising on quality. Whether you're promoting products, displaying advertisements, or enhancing customer communication, Core-Entry delivers consistent and reliable performance throughout the day. Built with a modular cabinet design, the display is easy to install, maintain, and expand as your business grows. Its seamless display technology eliminates visible gaps between panels, creating a smooth and immersive viewing experience. Wide viewing angles ensure that content remains bright and clear from different positions, making it suitable for busy indoor environments.
- Conference Centre
- Control Centre
- Broadcast
- Meeting Room
- Exhibition Centre
- Home Cinema
Product Highlights

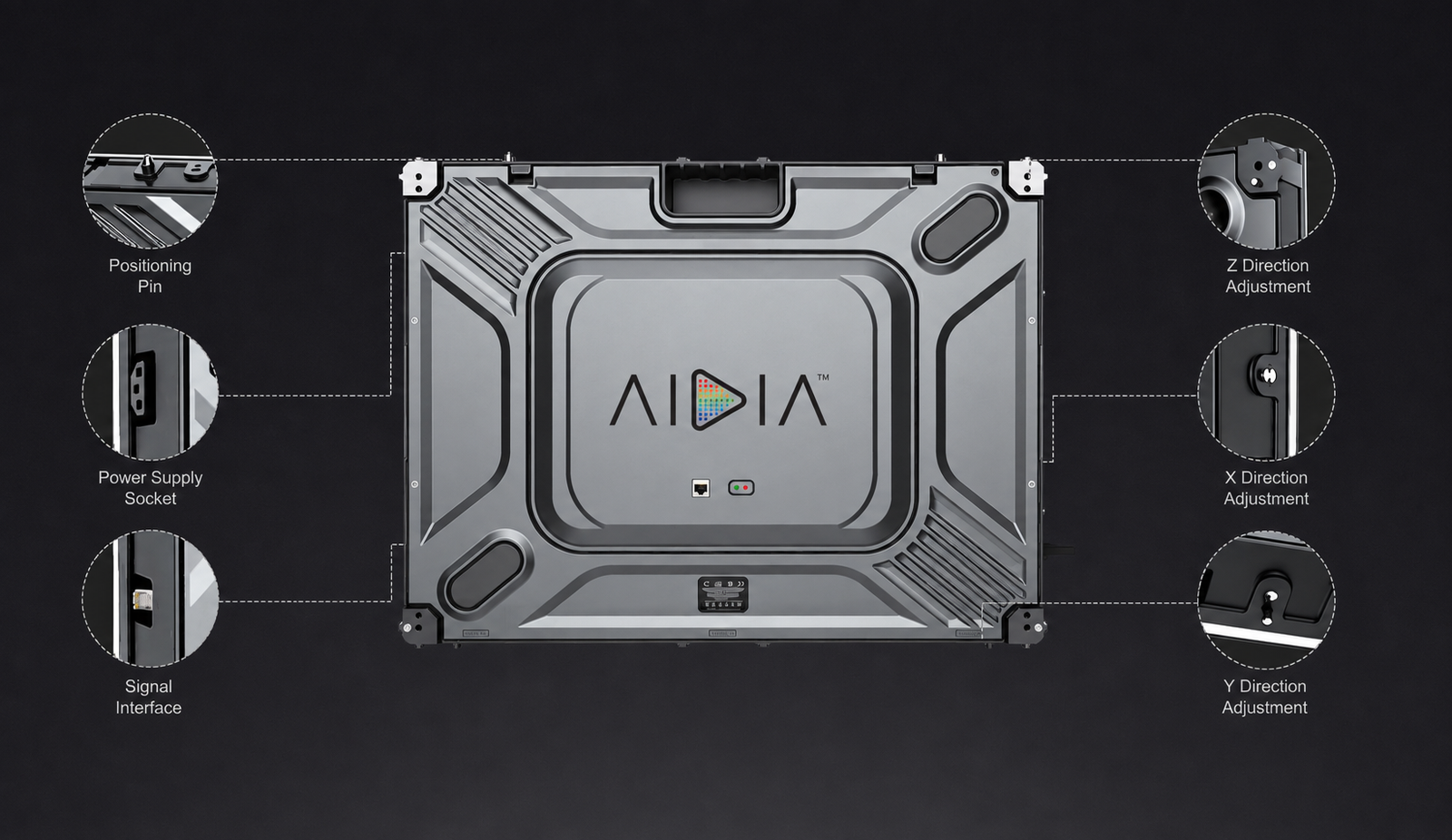

Structure Design
Perfect, easy alignment of displays in all axes for a homogeneous, flat appearance of the video wall; Highly precisely manufactured die-cast aluminium housing.

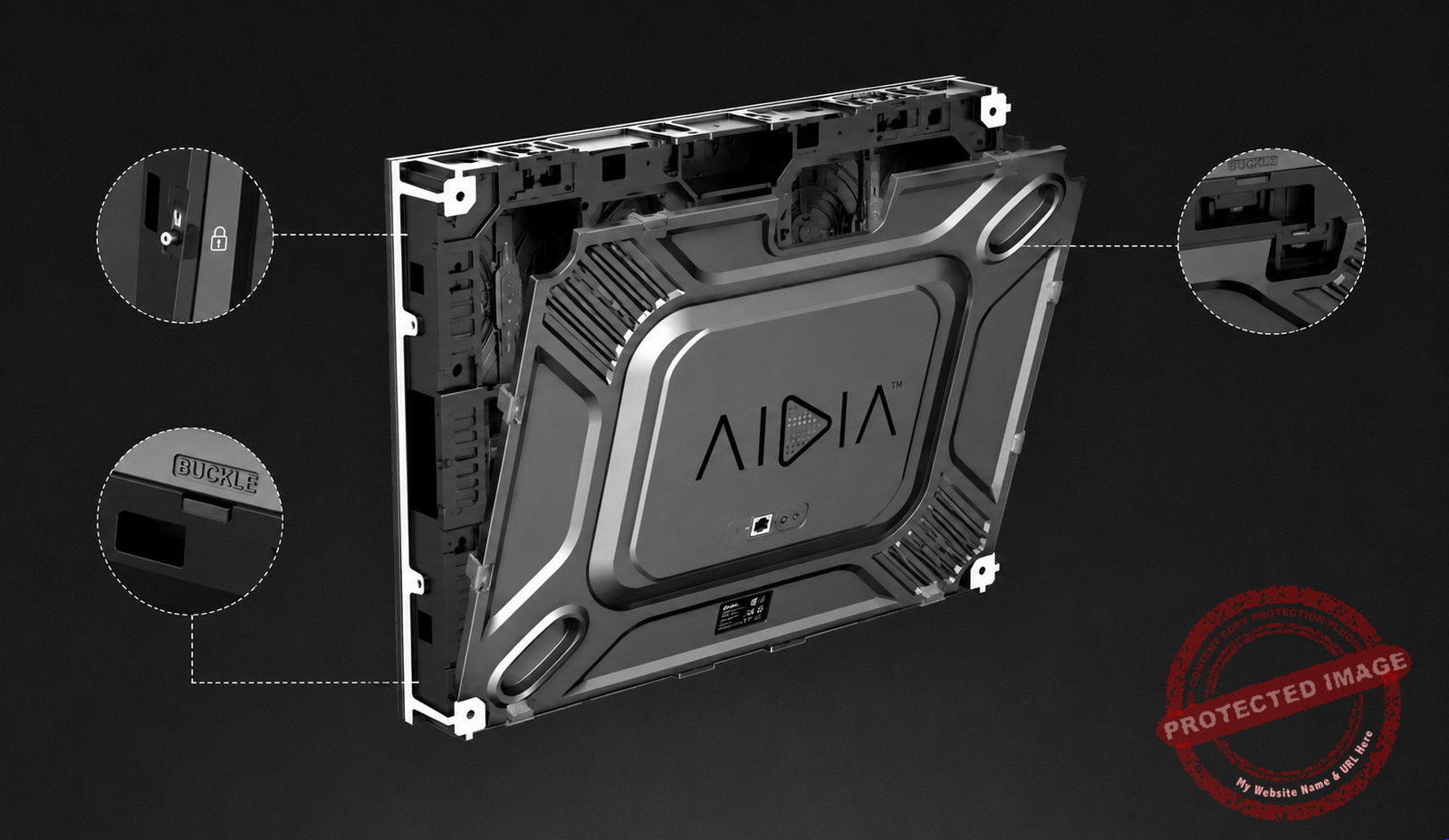

Back Cover Fixed to Cabinet Frame Without Screws
Slot at the bottom, glass beads in left and right, and elastic pin on the top to help fasten the rear cover of the cabinet

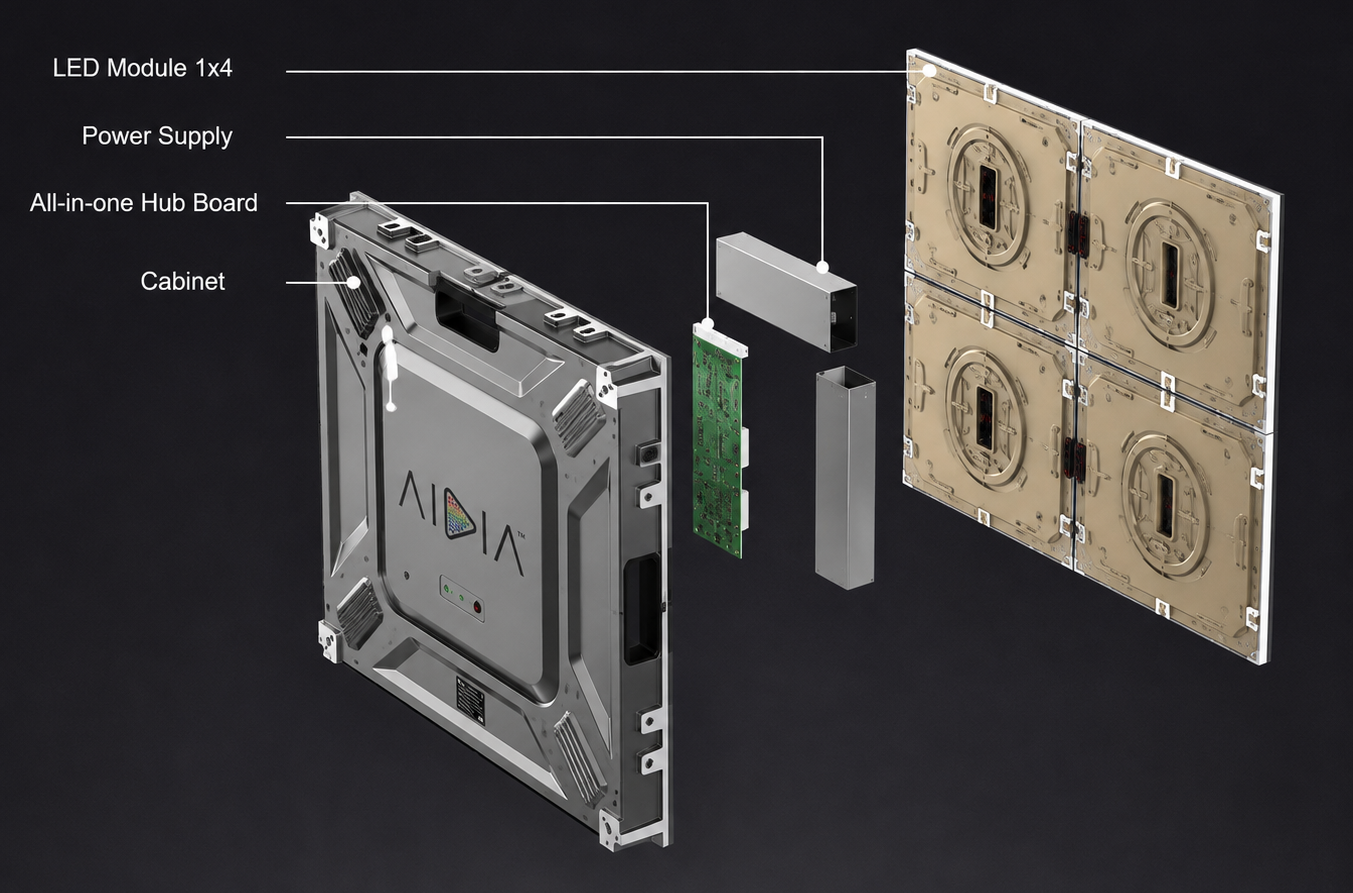

Rational Explosive View
The product has the signal loop backup and dual power supply backup function (power supply input AC100~240V(50-60Hz) to protect the signal transmission integrity. The distance between the power and data sockets is more than 300mm, which makes signal transmission more stable and reliable. The module and the driver board are connected by multi-pin connectors, which embedded the check function to make the connection more stable.

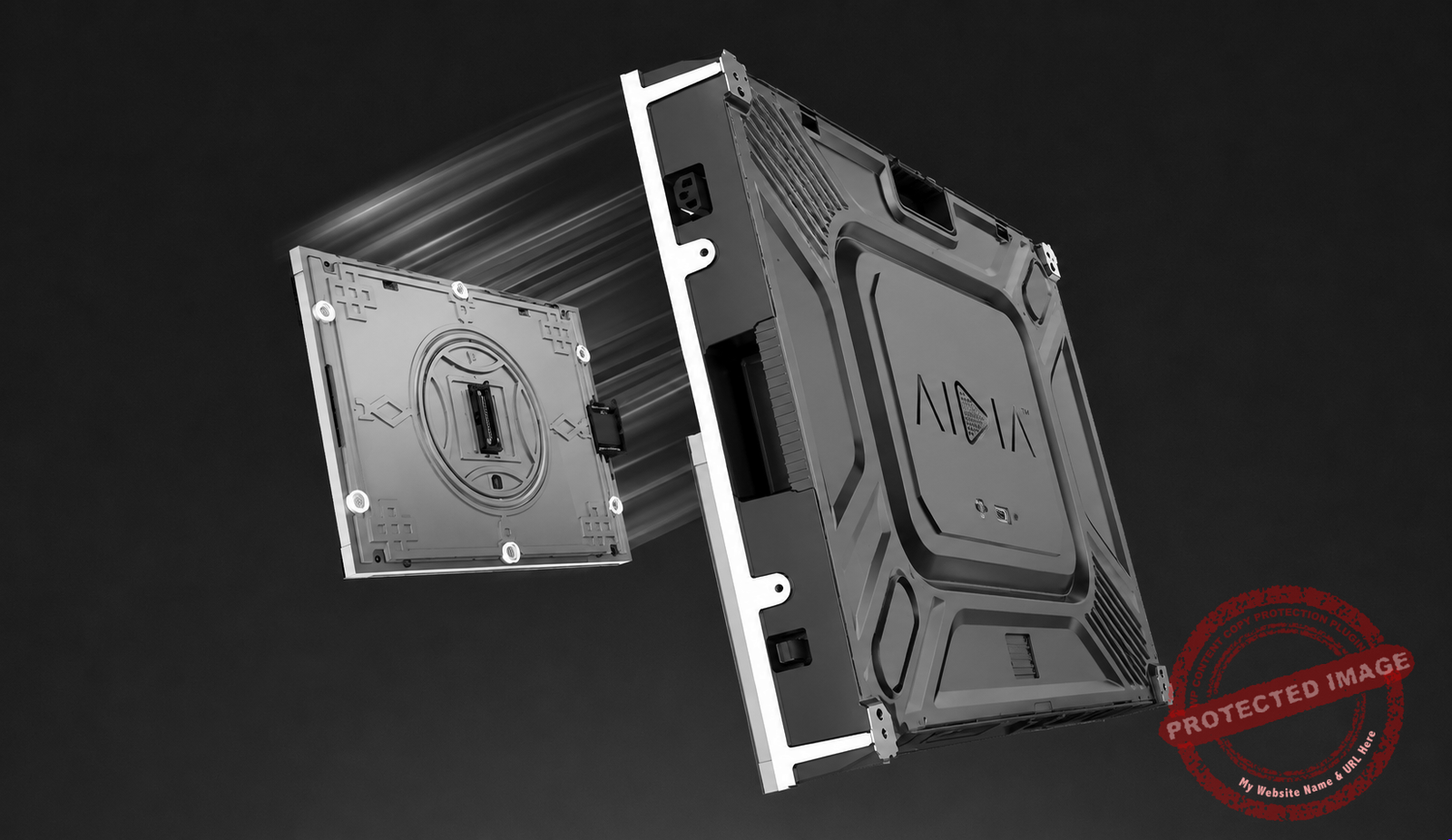

Strong Magnetic Force
There are 6 magnetic points of each module to provide strong magnetic force to connect module and cabinets.
Ultra-High Contrast Ratio
5000:1 ultra-high contrast ratio, support HDR，16bit+9bit processing mode, display more dynamic range and image details.
Excellent Performance
High Contrast Ratio 5000:1
High Grayscale 16Bit
High Refresh Rates 3840Hz
Specifications
|
ITEM
|
ACS1.8
|
|---|---|
|
Pixel Configuration
|
SMD
|
|
Pitch (mm)
|
1.88
|
|
Module Composition (WxH)
|
2×2
|
|
Cabinet Resolution (WxH)
|
340x256
|
|
Cabinet Size (mm)(WxHxD)
|
640x480x72
|
|
Unit Area (㎡)
|
0.3072
|
|
Pixel Density (pixel/㎡)
|
283333
|
|
Color Temperature (K)
|
3000—10000 Adjustable
|
|
Viewing Angle (H/V)°
|
160/140
|
|
Power Consumption Max./Avg. (W/㎡)
|
510/205
|
|
Power Supply
|
AC100~240V (50/60Hz)
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-20 ~ 40
|
|
Operation/Storage Humidity (RH)
|
10~80% / 10~85% no condensation
|
|
ITEM
|
ACS2.0
|
|---|---|
|
Pixel Configuration
|
SMD
|
|
Pitch (mm)
|
2
|
|
Module Composition (WxH)
|
2×2
|
|
Cabinet Resolution (WxH)
|
320x240
|
|
Cabinet Size (mm)(WxHxD)
|
640x480x72
|
|
Unit Area (㎡)
|
0.3072
|
|
Pixel Density (pixel/㎡)
|
250000
|
|
Color Temperature (K)
|
3000—10000 Adjustable
|
|
Viewing Angle (H/V)°
|
160/140
|
|
Power Consumption Max./Avg. (W/㎡)
|
480/195
|
|
Power Supply
|
AC100~240V (50/60Hz)
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-20 ~ 40
|
|
Operation/Storage Humidity (RH)
|
10~80% / 10~85% no condensation
|
|
ITEM
|
ACS2.5
|
|---|---|
|
Pixel Configuration
|
SMD
|
|
Pitch (mm)
|
2.5
|
|
Module Composition (WxH)
|
2×2
|
|
Cabinet Resolution (WxH)
|
256x192
|
|
Cabinet Size (mm)(WxHxD)
|
640x480x72
|
|
Unit Area (㎡)
|
0.3072
|
|
Pixel Density (pixel/㎡)
|
160000
|
|
Color Temperature (K)
|
3000—10000 Adjustable
|
|
Viewing Angle (H/V)°
|
160/140
|
|
Power Consumption Max./Avg. (W/㎡)
|
460/180
|
|
Power Supply
|
AC100~240V (50/60Hz)
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-20 ~ 40
|
|
Operation/Storage Humidity (RH)
|
10~80% / 10~85% no condensation
|
|
ITEM
|
ACS3.0
|
|---|---|
|
Pixel Configuration
|
SMD
|
|
Pitch (mm)
|
3.076
|
|
Module Composition (WxH)
|
2×2
|
|
Cabinet Resolution (WxH)
|
208x156
|
|
Cabinet Size (mm)(WxHxD)
|
640x480x72
|
|
Unit Area (㎡)
|
0.3072
|
|
Pixel Density (pixel/㎡)
|
105625
|
|
Color Temperature (K)
|
3000—10000 Adjustable
|
|
Viewing Angle (H/V)°
|
160/140
|
|
Power Consumption Max./Avg. (W/㎡)
|
450/170
|
|
Power Supply
|
AC100~240V (50/60Hz)
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-20 ~ 40
|
|
Operation/Storage Humidity (RH)
|
10~80% / 10~85% no condensation
|
|
ITEM
|
ACS4.0
|
|---|---|
|
Pixel Configuration
|
SMD
|
|
Pitch (mm)
|
1.88
|
|
Module Composition (WxH)
|
2×2
|
|
Cabinet Resolution (WxH)
|
160x120
|
|
Cabinet Size (mm)(WxHxD)
|
640x480x72
|
|
Unit Area (㎡)
|
0.3072
|
|
Pixel Density (pixel/㎡)
|
62500
|
|
Color Temperature (K)
|
3000—10000 Adjustable
|
|
Viewing Angle (H/V)°
|
160/140
|
|
Power Consumption Max./Avg. (W/㎡)
|
430/155
|
|
Power Supply
|
AC100~240V (50/60Hz)
|
|
Refresh Rate (Hz)
|
3840
|
|
Operation Temperature (℃)
|
-20 ~ 40
|
|
Operation/Storage Humidity (RH)
|
10~80% / 10~85% no condensation
|
