AIDIA ARC – Curved LED Walls
AIDIA ARC is a flexible curved LED wall solution created for spaces where conventional flat displays cannot deliver the desired visual impact. Designed for museums, retail environments, experience centres, exhibitions, and immersive installations, AIDIA ARC enables creative screen configurations that follow architectural curves and unique interior structures. The display delivers vibrant colours, high contrast, smooth motion, and detailed visuals to create engaging experiences from multiple viewing angles. Its flexible design allows designers and architects to explore concave, convex, and creative curved display concepts while maintaining a seamless visual surface. AIDIA ARC is ideal for storytelling, product presentation, interactive experiences, brand environments, and digital art installations. The modular construction supports customised dimensions and installation requirements, allowing the display to become an integral part of the surrounding architecture. High refresh rates and precise calibration help maintain consistent image quality across the curved surface. With professional design, installation, commissioning, and technical support, AIDIA ARC transforms ordinary spaces into immersive visual environments that capture attention and create memorable experiences.
- Stage Show
- Concerts
- Celebrations
- Conferences
- Exhibition
- Sports events
Product Highlights
Curved Splicing & Concave Setup
Rental LED displays are a flexible solution widely used in temporary events and occasions. They are commonly used in exhibitions, concerts, conferences, sports events, and commercial activities to provide high-quality visual effects and information delivery.

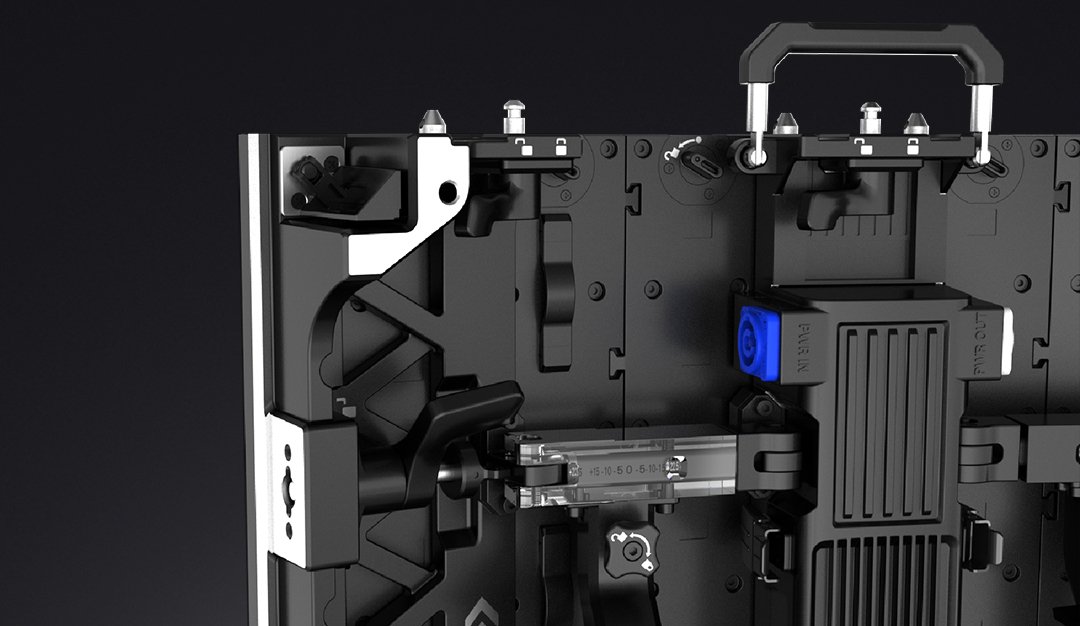

High Quality Die-casting Aluminum Cabinet
* Ultra Precision CNC (<0.15mm)

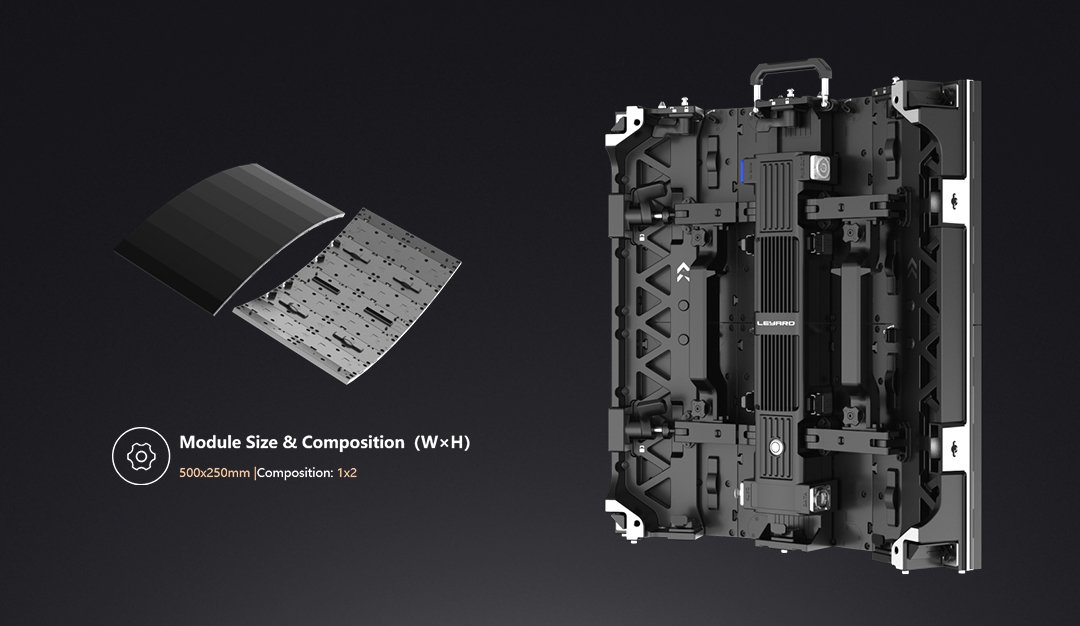

* Module Size & Composition (W×H): 500x250mm | Composition: 1x2

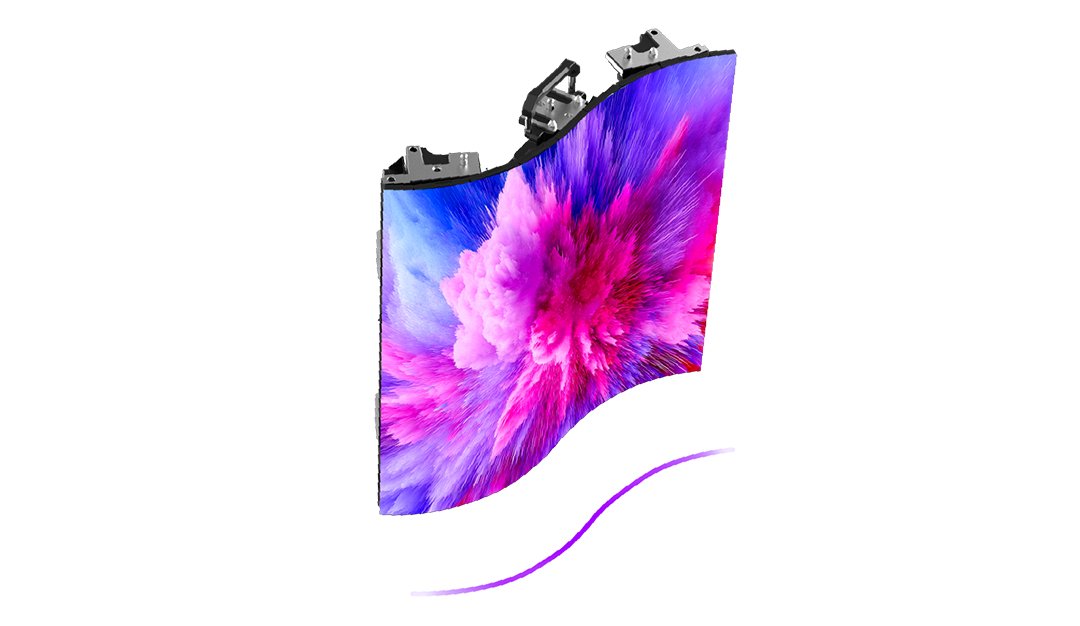

Smooth Flexible Surface
The module is smooth, which is different from the unsmooth curved surface made by the multi-fold lines of the large module of the ordinary curved screen. Achieve a perfect S-shape in a single cabinet, and easily adjust the perfect curvature.
9 Radians Adjustable
+22.5° +15° +10° +5° 0° -5° -10° -15° -22.5°

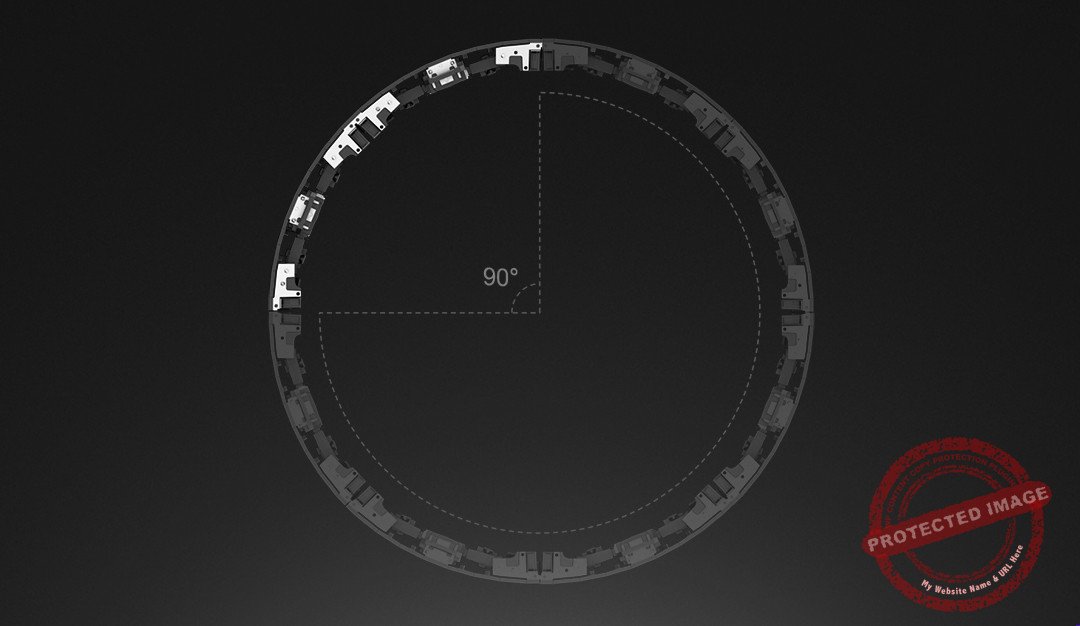

Curved Splicing

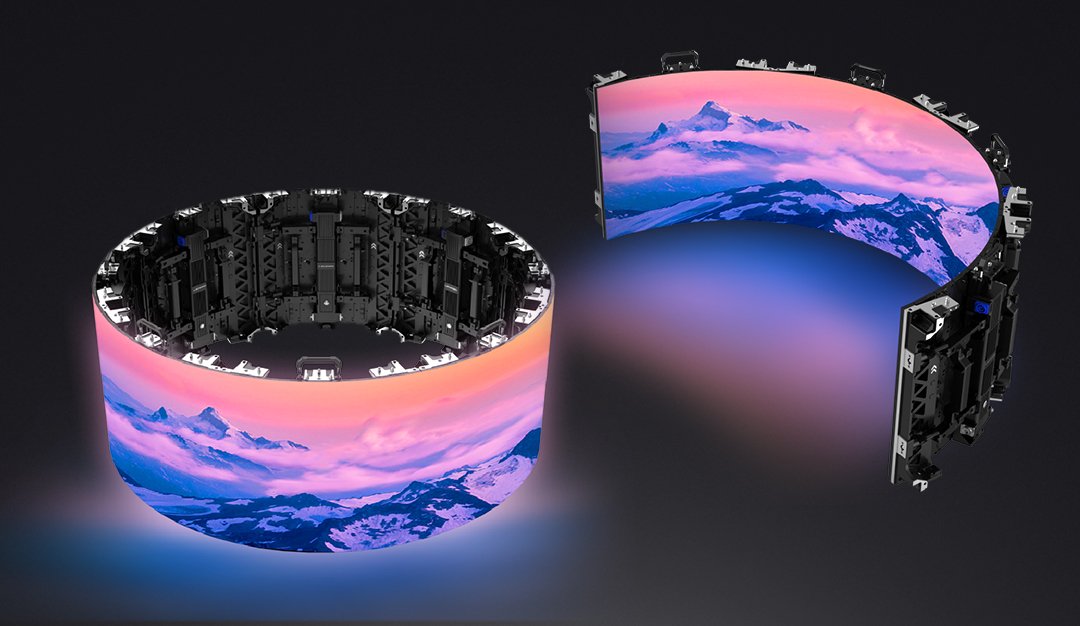

A cylinder (diameter of 1.2M) screen is achievable with only 8 cabinets. ± 45° arc, two cabinets are put together to form a 90°
Specifications
| Item | AA1.95 |
|---|---|
|
Pixel Pitch (mm)
|
1.95
|
|
Cabinet Dimensions (WxHxD) (mm)
|
500x500x79
|
|
Cabinet Resolution
|
256x256
|
|
Module Size (mm)(WxH)
|
500x250
|
|
Module Composition (WxH)
|
1x2
|
|
Brightness (nits)
|
1000
|
|
Refresh Rate(Hz)
|
≥3840Hz/≥7680Hz
|
|
Max./Avg.Power Consumption(W/㎡)
|
600/200
|
|
Viewing Angle (H/V) (°)
|
160/140
|
|
Contrast Ratio
|
5000:01:00
|
| Item | AA2.6 |
|---|---|
|
Pixel Pitch (mm)
|
2.6
|
|
Cabinet Dimensions (WxHxD) (mm)
|
500x500x79
|
|
Cabinet Resolution
|
192x192
|
|
Module Size (mm)(WxH)
|
500x250
|
|
Module Composition (WxH)
|
1x2
|
|
Brightness (nits)
|
1000
|
|
Refresh Rate(Hz)
|
≥3840Hz/≥7680Hz
|
|
Max./Avg.Power Consumption(W/㎡)
|
600/200
|
|
Viewing Angle (H/V) (°)
|
160/140
|
|
Contrast Ratio
|
5000:01:00
|
| Item | AA2.9 |
|---|---|
|
Pixel Pitch (mm)
|
2.97
|
|
Cabinet Dimensions (WxHxD) (mm)
|
500x500x79
|
|
Cabinet Resolution
|
176x168
|
|
Module Size (mm)(WxH)
|
500x250
|
|
Module Composition (WxH)
|
1x2
|
|
Brightness (nits)
|
1000
|
|
Refresh Rate(Hz)
|
≥3840Hz/≥7680Hz
|
|
Max./Avg.Power Consumption(W/㎡)
|
600/200
|
|
Viewing Angle (H/V) (°)
|
160/140
|
|
Contrast Ratio
|
5000:01:00
|
| Item | AA3.9 |
|---|---|
|
Pixel Pitch (mm)
|
3.9
|
|
Cabinet Dimensions (WxHxD) (mm)
|
500x500x79
|
|
Cabinet Resolution
|
128x128
|
|
Module Size (mm)(WxH)
|
500x250
|
|
Module Composition (WxH)
|
1x2
|
|
Brightness (nits)
|
1000
|
|
Refresh Rate(Hz)
|
≥3840Hz/≥7680Hz
|
|
Max./Avg.Power Consumption(W/㎡)
|
600/200
|
|
Viewing Angle (H/V) (°)
|
160/140
|
|
Contrast Ratio
|
5000:01:00
|
